TEAM ASSOCIATED RC10B74.1 Team 1/10 4WD Off-Road Electric Buggy Kit

TEAM ASSOCIATED RC10B74.1 Team 1/10 4WD Off-Road Electric Buggy Kit

Regular price $749.99 CAD
Regular price Sale price $749.99 CAD
Sale Sold out

The Team Associated RC10 B74.1 Team 1/10 4WD Off-Road Electric Buggy Kit is the buggy of choice for high-grip carpet or turf track surfaces with its next-generation Octalock 2-Pad high-load, high-capacity, center slipper clutch and optimized carpet kit setup.

The off-road RC car racing scene has changed over the past few years, with turf and carpet racing becoming more popular and grip levels at an all-time high. The engineers inside Team Associated's Area 51 were quick to answer the 4WD class with the RC10B74 Team Kit, a unique chassis configuration equipped with a long list of features designed to give you the winning edge.

The B74.1 features redesigned, low-profile shock towers with shorter shock shafts and bodies to lower the center of gravity, providing more predictable handling. Also included in both kits are redesigned low roll center (LRC) C and D arm mounts, 66mm CVA bones and axles, and 2.0mm G10 fiberglass chassis brace supports, which all add up to making the B74.1 easier to drive, and easier to push hard on all track surfaces.

Setups and tuning parts are interchangeable between the B74.1 and B74.1D. Both versions come with the speed, durability, and lineage expected of a true champion. Choose the configuration that suits your track and conquer the competition!

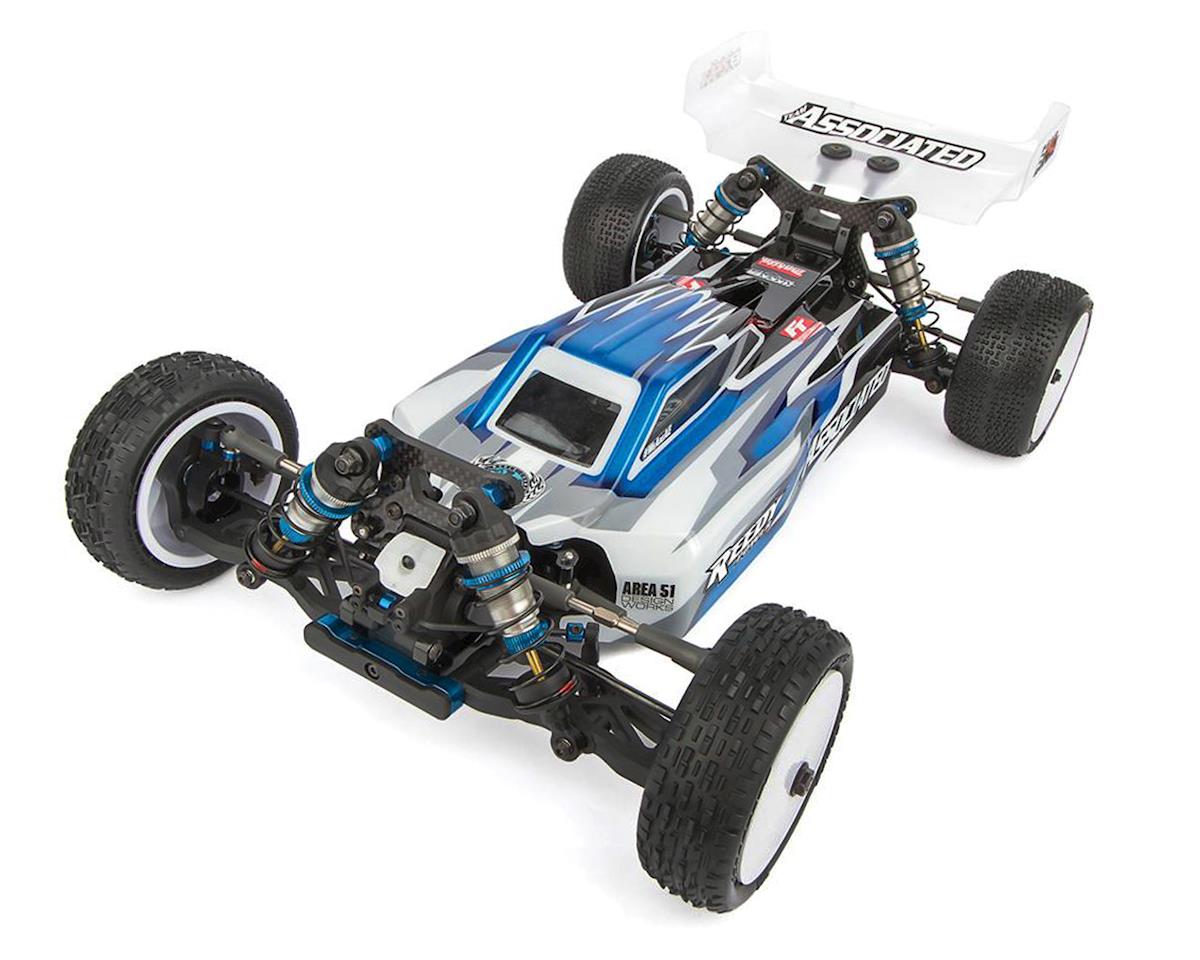

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.

Features:

  • B74.1 Team Kit
    • Next-generation 2-Pad high-load, high-capacity Octalock center slipper clutch with LCF pad material
    • Redesigned Octalock design features keyed spur gear and LCF slipper pads with 8 locking tabs
    • 2.0mm anti-roll bars included front and rear
    • 6.0mm rear hex adapters
    • Updated kit setup includes V2 red front and V2 blue rear springs
    • Shorter 23mm front and 27.5mm rear 12mm threaded aluminum shocks with machined pistons and internal X-rings
    • Redesigned 4mm carbon fiber front shock tower has been lowered by 2mm and features an additional row of camber link positions
    • Redesigned 4mm carbon fiber rear shock tower lowered by 5.5mm
    • +3mm aluminum steering rack
    • 66mm rear CVA driveshafts and axles
    • Redesigned molded ESC tray
    • Redesigned molded 30mm fan mount (fan not included)
  • UPDATES:
    • Updated aluminum LRC C and D suspension
    • 2.0mm G10 chassis brace supports
    • Simplified 2.5mm carbon fiber battery strap with indexed battery locations, easy height setup, and battery removal for both standard and low-profile shorty batteries
    • Updated low-profile molded plastic battery posts included in addition to standard posts
    • Updated 16mm differential outdrives with a more durable, lightweight design
    • Updated rear wing with optional low trim line for reduced drag
    • Updated symmetrical rear arms with new shock mounting position (farther inside)
    • Updated plastic rear hubs for more durability on the upper link mount. RC10B74.1 hubs continue with the aluminum rear hub link mount and axle height adjustment in 1mm increments for fine tuning
    • Updated 2.5mm carbon fiber steering arms
    • Updated steering blocks with 5x12mm outer ball bearings with steel crush tubes for improved durability
    • Updated V2 2mm hard-anodized 7075-T6 aluminum chassis with spur gear clearance and updated mount holes for ESC tray
  • LEGACY B74 Features:
    • 7075-T6 aluminum bulkheads with quick-change 0mm-3mm adjustable differential height for low ride-height on carpet while maintaining efficient driveshaft alignment
    • Interchangeable use of center differential or slipper clutch without changing center driveshafts
    • Easy access differentials
    • 7075-T6 aluminum arm mounts use inserts for fine tuning a large range of anti-squat, kick-up, and toe adjustments
    • Front and rear anti-roll bars use a common shape for minimal spare part count
    • 7075-T6 aluminum sliding motor mount and center bulkhead with increased rigidity
    • 7075-T6 aluminum 9-degree caster blocks
    • Floating servo mount with 7075-T6 aluminum mount and 2.5mm carbon fiber brace
    • Lightweight clear body and wing included
Specifications:
Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 395mm (15.55in)
Width: varies
Wheelbase: varies
Weight: varies
Drive: 4WD

Needed to Complete:
  • 1:10 scale electric motor
  • Electronic speed control
  • 7.4V LiPo, 6.0V LiFe (standard or low-profile case height)
  • Battery charger (suitable for batteries mentioned above)
  • 2-channel surface transmitter
  • 2-channel receiver
  • Steering servo
  • Spray paint for polycarbonate body
  • 1:10 scale off-road wheels and tires
  • Silicone Shock Fluid, Silicone Diff Fluid
  • Tools
