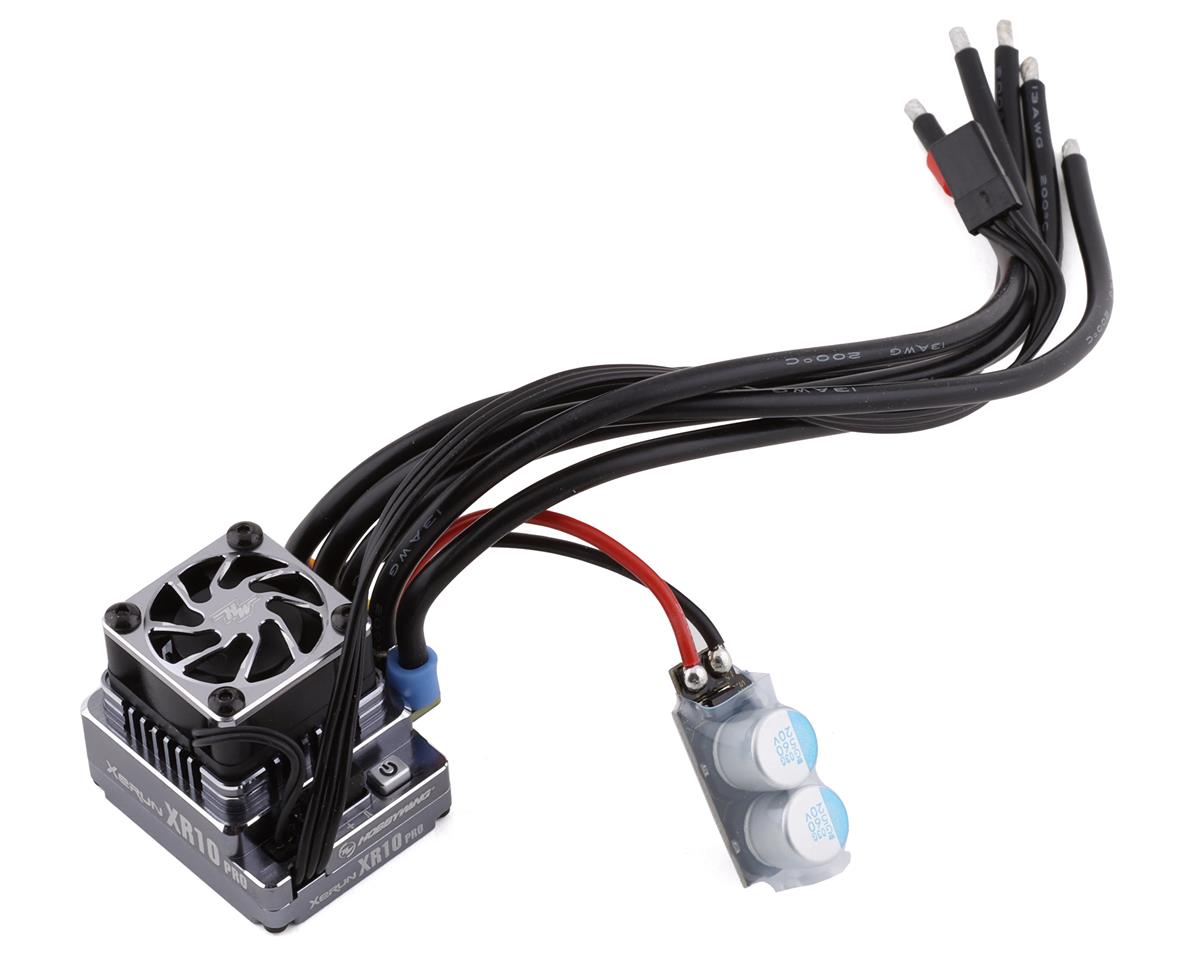

Hobbywing Xerun XR10 Pro G2S Elite 160A Sensored Brushless ESC (Midnight Silver) (PRE-COMMANDE)
Hobbywing Xerun XR10 Pro G2S Elite 160A Sensored Brushless ESC (Midnight Silver) (PRE-COMMANDE)
Regular price
$220.00 USD
Regular price
Sale price
$220.00 USD
Unit price
per
The Hobbywing Xerun XR10 Pro G2S 160A Sensored Brushless ESC is great for giving the user all the tuning options needed for competitive racing. With precise adjustments available, the Elite edition is designed to give the user precise motor control.
PWM Adjustments:
From preset frequency or the custom frequency settings, tuners can now adjust from 1K - 32K PWM for Throttle and 0.5-16K for Brakes. This allows ultra fine-tuning of throttle and brakes to suit any driver or track condition.
Internal BEC:
The internal BEC is a switching design and provides up to 10A of power. Adjustable from 5-7.4V, this ESC is designed to handle the most power hungry of servos.
NOTE: While the XR10 Pro G2S ESC is equipped with a built-in reverse polarity protection, the external capacitor will still be damaged if a reverse polarity does occur. For full protection an optional Hobbywing Non-polarity Capacitor Module is recommended.
Features:
- 32 Bit, M4 microprocessor for ultimate performance
- Reverse polarity protection
- Precise adjustments to throttle and brake PWM
- Optimized programmable parameters
- Extended brake force
- Drag Brake Acceleration and Softening Function
- High output BEC
Specifications:
Wire gauge: 13 AWG Lightweight Ultra-flex
Application: 1/10th Touring car & Buggy racing, 1/10th drift car and F1
Continuous Current: 160A
Peak Current: 1200A
Input Voltage: 2S LiPo / 4-6S Cell NiMH
BEC Output: BEC voltage of 5-7.4V
Programming device: LCD Program Box / OTA Programmer
Firmware: LCD Program box via USB software (PC only) / OTA (iOS / Android)
Size & Weight: 37.5x30.9x32.5mm (with Fan & Fan Shroud)
Weight: 88g (with wires)
Motor spec recommendation:
Touring Car: >4.5T
Buggy: >5.5T
Includes:
- (1) Xerun XR10 Pro G2S 160A Sensored Brushless ESC
- (1) Cooling Fan
- (1) Capacitors
- Decals
- Accessory package
